"Video" Project

It is quite easy to generate your own black and white NTSC output using a PICmicro. Using this application, you can start working on the beginning of a "breakout" game or use the information for your own video display. Please note that this application should NOT be used with a TV set that you care about.

Click Here to look at the PICmicro MCU source code.

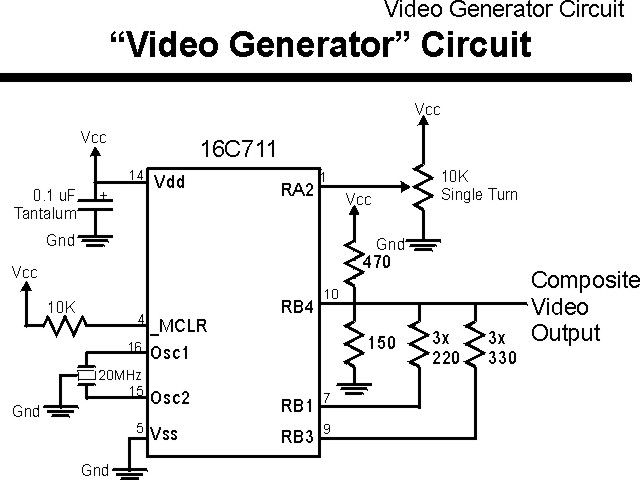

The circuit used for this application is:

The bill of materials for this application is listed in the table below.

Part Description

16C711 PIC16C711-JW

20 MHz 20 MHz Ceramic Resonator with Internal Capacitors

10K 10K, 1/4 Watt Resistor

470 470 Ohm, 1/4 Watt Resistor

150 150 Ohm, 1/4 Watt Resistor

220 3x 220 Ohm, 1/4 Watt Resistors, wired in Parallel

330 3x 30 Ohm, 1/4 Watt Resistors, wired in Parallel

10K Pot 10K, Single Turn Potentiometer

0.1 uF 0.1 uF, 16 Volt Tantalum Capacitor

Miscellaneous Prototyping Card, Wiring, +5 and +15 Volt Power Supply, Video Modulator, 75 Ohm Co-Ax cabling, (cheap) Black and White TV Set
