"Servo" Project

This project demonstrates how much power is available in the PICmicro® MCU to not only provide device interface functions, but also to provide a text based user interface. This is an application that I really felt like I could exploit the capabilities of 18 pin PICmicro microcontrollers.

Click Here to look at the PICmicro MCU source code.

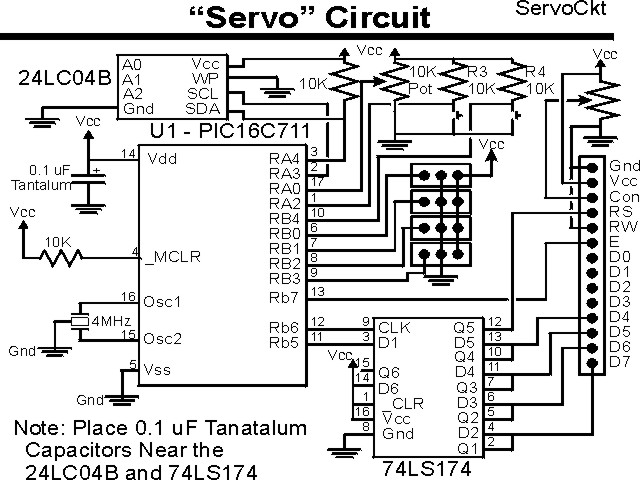

The circuit used for this application is:

The bill of materials for this application is listed in the table below.

Part Description

U1 PIC16C711-JW

24LC04B 24LC04B/I2C Serial EEPROM

74LS174 74LS174/Hex "D" Flip Flop

Y1 4 MHz Ceramic Resonator with Internal Capacitors

R1 - R4 10K, 1/4 Watt Resistors

Pot 10K 2x 10K, Single Turn Potentiometer

C1 - C3 0.1 uF, 16 Volt Tantalum Capacitor

SW1 - SW2 Momentary On Pushbutton Switches

Sevo Connections 4x 3x1 IDC Male Connectors

Miscellaneous Prototyping Card (see Text), Sockets, Wiring, +5 Volt, 500 mA Power Supply
