| PART 10: Disorders of the Cardiovascular System SECTION 3 Disorders of Rhythm e30 Atlas of Cardiac Arrhythmias | Print | Close Window | | < Previous | Next > |

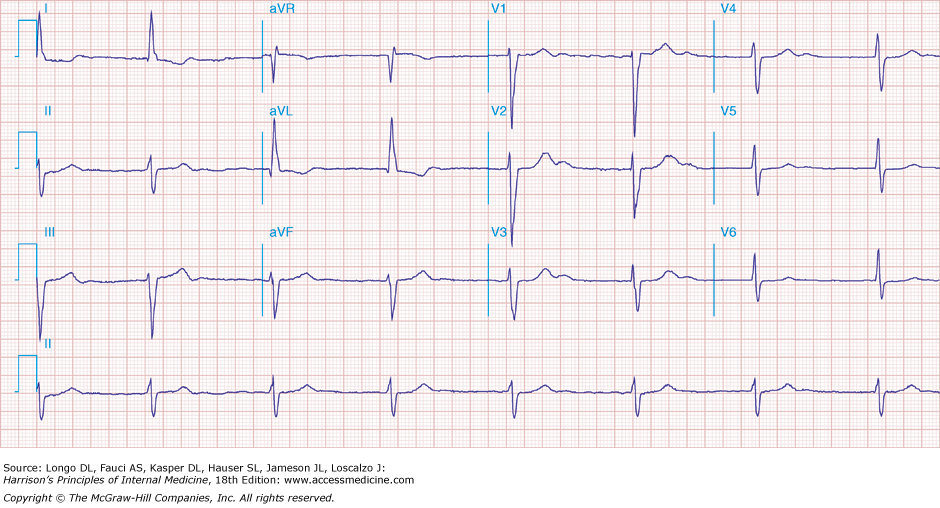

Figure e30-18  Figure e30-18 AF with complete heart block and a junctional escape mechanism causing a slow regular ventricular response (45/min). The QRS complexes show an intraventricular conduction delay with left-axis deviation and LVH. Q-T (U) prolongation is also present. |
