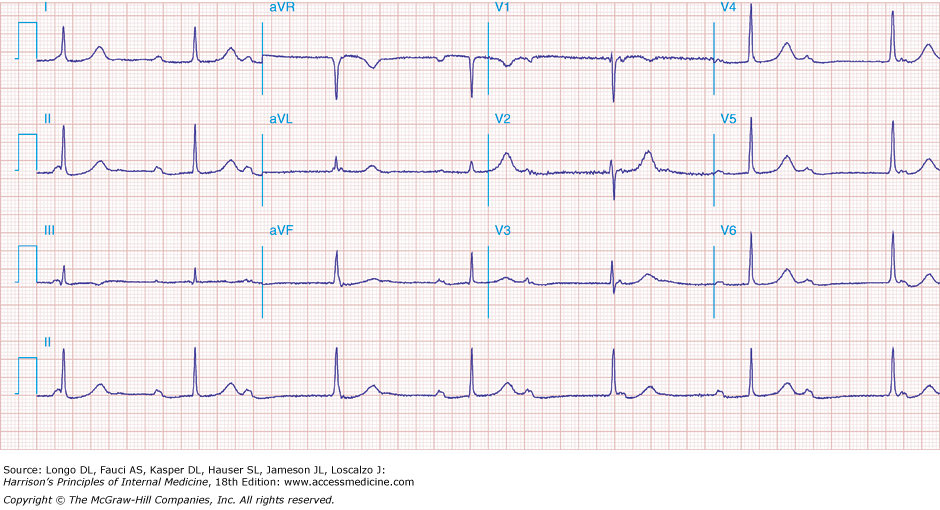

Figure e30-6  Figure e30-6 Sinus rhythm at a rate of 64/min (P wave rate) with third-degree (complete) AV block yielding an effective heart (pulse) rate of 40/min. The slow, narrow QRS complexes indicate an A-V junctional escape pacemaker. Left atrial abnormality. |
